Design Your Own Smart Info screen. Minimum dimensions 48 x 48 cm. Maximum dimensions 24 x 24 meters and everything in between.

  • 4 generation of Smart LED screens. High resolution. High brightness. High quality

  • Get your message out, information, advertising and entertainment.

  • Smart info screen solution is the perfect marketing tool

  • Easy installation, low power consumption, long life.

  • Smart Info software ... ease of use is the key word

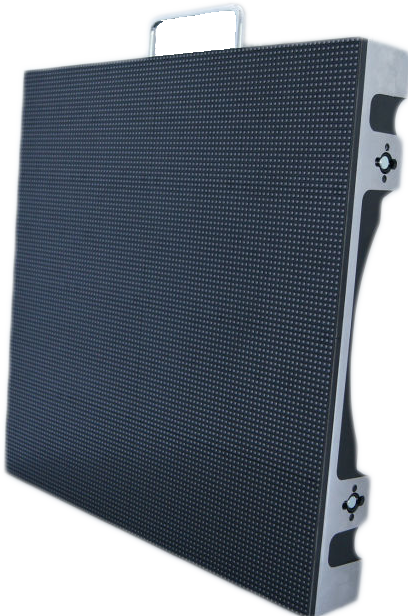

About Our LED Display Screens

    EDS Standard 1200 & ESD High Power 1800

  • indoor LED display IP44
  • Cabinet weight 7.5 kg, depth 73 mm
  • Compact and quiet power with excellent heat dissipation
  • Refresh rate> 800Hz, 4 times higher than the normal screen
  • Simple cleaning
  • Comes complete with all necessary cables and connectors
  • The modules are made of heavy cast aluminum alloy
  • Model - ESD Standard 1200/3.75S
  • Pixel Pitch - 3.75mm
  • Pixel Density - 71,111,dots/m2
  • LED Configuration - 1R,1G,1B
  • Colors - >16.7 M
  • Brightness - >1200 nits
  • Gray Scale - >12 bit
  • Refresh Rate - >720 Hz
  • Viewing Angle - 140°(Horizontal) - 140°(Vertical)
  • Dimension - 480mm x 480mm x 73mm
  • Resolution - 128 x 128
  • Weight - 8.3 kg
  • Protection Level - IP43
  • Maximum Hanging - Max 20 panels
  • Input Voltage - AC 110V~220V+/-10%
  • Source - DVI, RGB, CVBS, HDMI, YUV, SDI etc
  • Temperature - -20°C ~ +40°C (operating) -20°C ~ +60°C (storage)
  • Humidity - 10% ~ 90% (operating) 10% ~ 90% (storage)
  • Life Span - 100,000 hrs
  • Model - ESD High Power 1800/3.75A
  • Pixel Pitch - 3.75mm
  • Pixel Density - 71,111,dots/m2
  • LED Configuration - 1R,1G,1B
  • Colors - >16.7 M
  • Brightness - >1800 nits
  • Gray Scale - >15 bit
  • Refresh Rate - >1500 Hz
  • Viewing Angle - 140°(Horizontal) - 140°(Vertical)
  • Dimension - 480mm x 480mm x 73mm
  • Resolution - 128 x 128
  • Weight - 8.3 kg
  • Protection Level - IP43
  • Maximum Hanging - Max 20 panels
  • Input Voltage - AC 110V~220V+/-10%
  • Source - DVI, RGB, CVBS, HDMI, YUV, SDI etc
  • Temperature - -20°C ~ +40°C (operating) -20°C ~ +60°C (storage)
  • Humidity - 10% ~ 90% (operating) 10% ~ 90% (storage)
  • Life Span - 100,000 hrs

This example shows the 2x6 configuration for the travel industry

Measure length 2.88Meter height 0.96 meters

This example shows the 2x3 configuration for Real Estates










Measure length 1.44Meter height 0.96 meters
